The shield body is made of 2.5mm thick bulletproof steel plate,

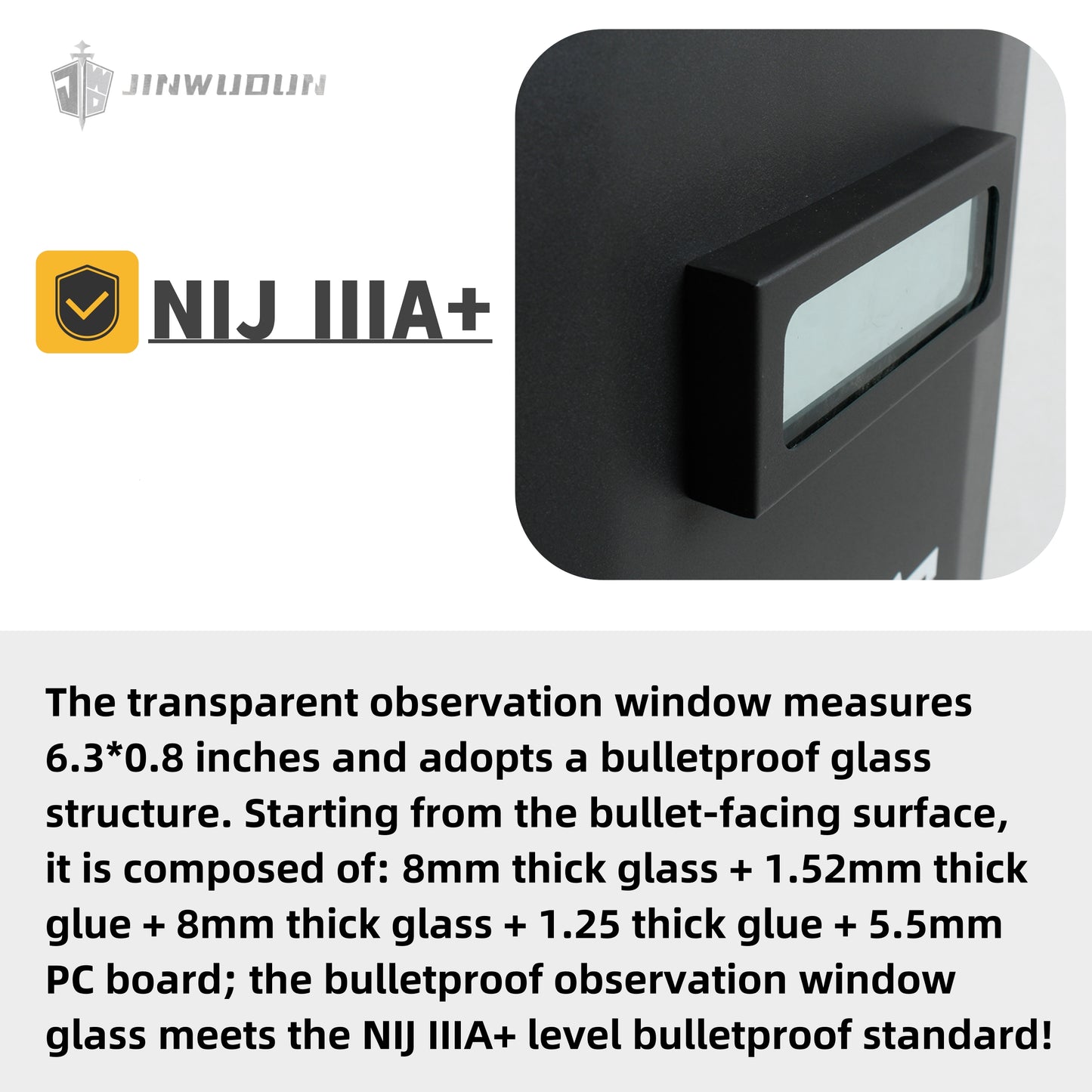

The transparent observation window size is 160mm*50mm,
The bulletproof glass structure used in the observation window is: 8.0mm thick glass + 1.52mm thick glue + 8.0mm thick glass + 1.25mm thick glue + 5.5mm thick PC board from the bullet-facing surface.
The protection area of the bulletproof shield is 0.36㎡,
The weight is 8.7kg;
The light transmittance of the bulletproof shield observation window is 80.9%;
Flame retardant performance:
The afterburning time of the outer surface of the shield is 3.2s; 7. Environmental adaptability: -25℃~+55℃8. It has a product inspection report issued by the Special Product Quality Supervision and Inspection Center of the China Ordnance Equipment Department, numbered Bingjianzi 2020 No. 0272.
